5H3B08-DM92/0

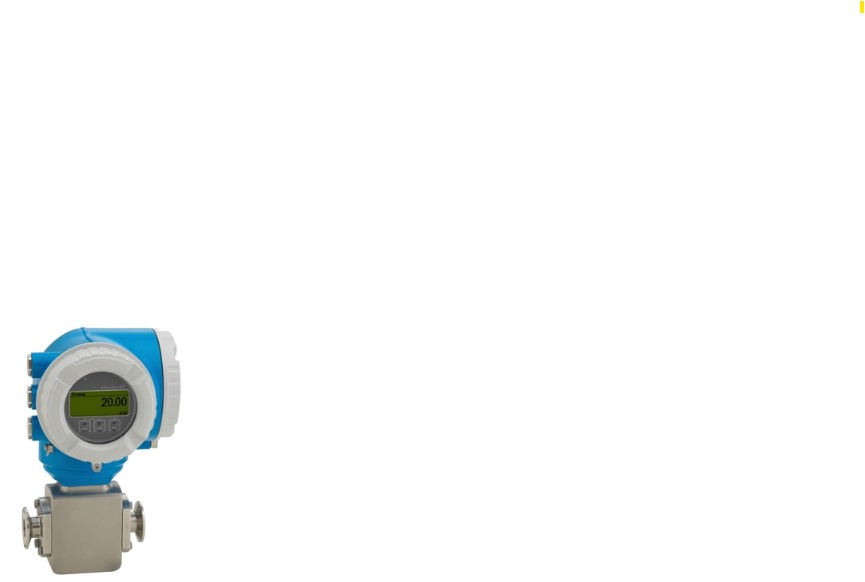

Electro-Magnetic, Standard Promag H300, 5H3B08, DN08 5/16″

5H3B08-AAIBAEAFAAAI3S0AA2
010: Approval; Transmitter + Sensor: AA: Non-hazardous area
015: Power Supply: I: AC 100…240V/DC 24V
020: Output; Input 1: BA: 4-20mA HART
021: Output; Input 2: E: Pulse/freq./switch output
022: Output; Input 3: A: W/o;
030: Display; Operation: F: 4-line illum.; touch control
040: Housing: A: Alu, coated
050: Electrical Connection: A: Gland M20
060: Seal:A: O-ring, EPDM
070: Process Connection: I3S: Internal thread ISO 228,
1.4404/316L, for pipe size: DN2-8=3/8″, DN15=1/2″, DN25=1″
075: Electrodes: 0: 1.4435/316L
080: Flow Calibration: A: 0.5%
480: Device Model: A2: 2
